AE Sample Configurations

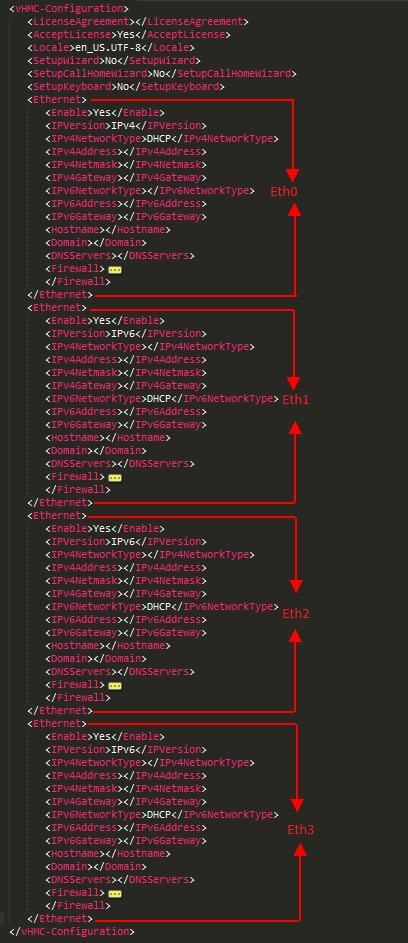

Each Ethernet Tag within a AE configuration will be assigned a Network Adapter name.
The first Ethernet Tag will be assigned Eth0, second will be assigned Eth1, third will be assigned Eth2 and fourth will be assigned Eth3.
A maximum of 4 Network Adapters can be configured with AE.

Each Ethernet Tag with its respective network configuration will configure a network adapter. Adding more Ethernet Tags will let you configure more network adapters.

Note:    The number of Ethernet adapters defined in the vHMC-Conf.xml configuration file has to match the defined Network adapters in Domain.xml or vHMC.cfg.
