In this lab you will gain experience with the various methods available to inject local prefixes into the BGP table and advertise them to BGP peers.

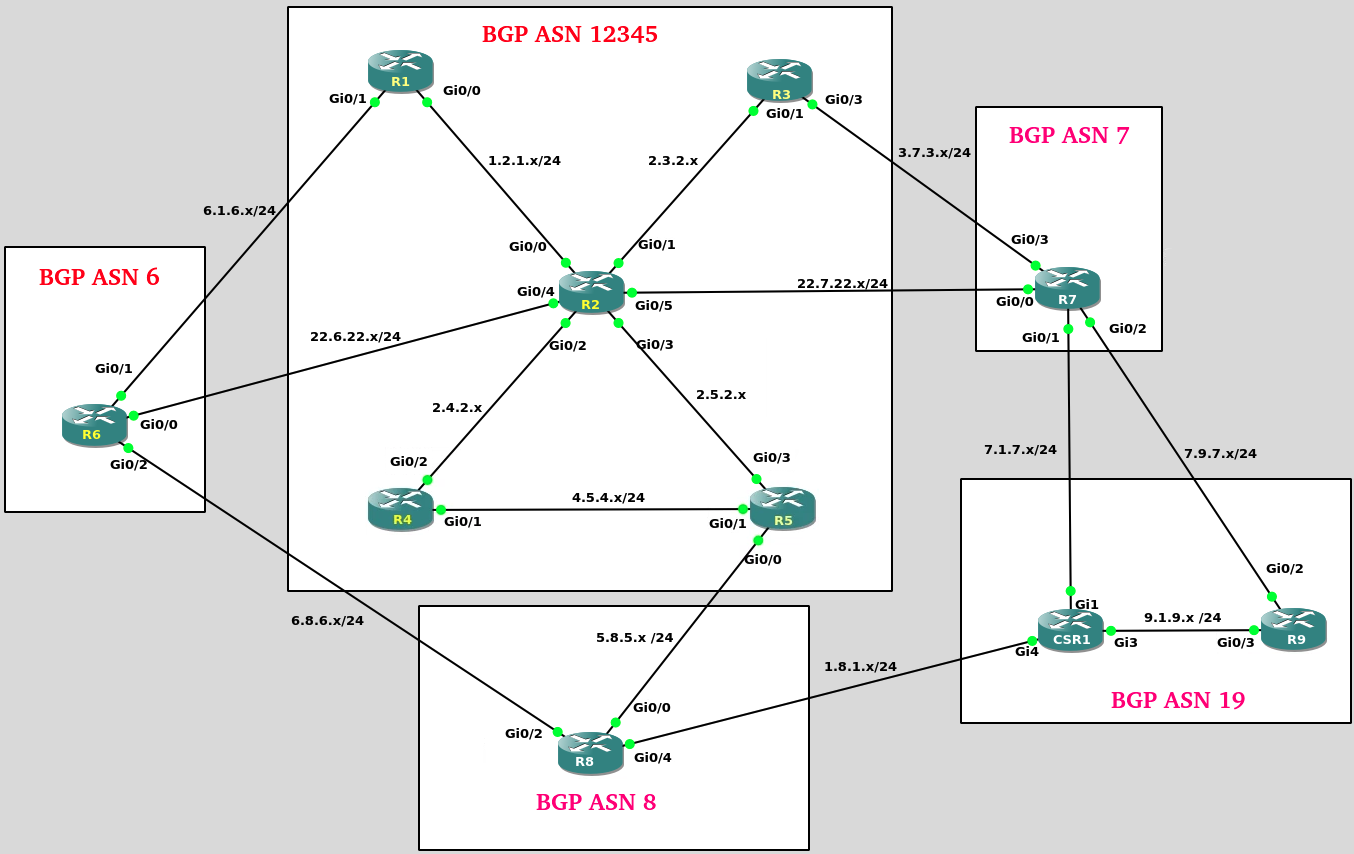

• The last octet of the IPv4 address of each interface ends with the value of the router's name. For example, the Gig0/0 interface on R6 is addressed with 22.6.22.6 while Gig0/4 on R2 is 22.6.22.2. You will only use a limited subset of this topology for this lab.
• Each device has a Loopback0 interface pre-configured with x.x.x.x as its IPv4 address where "x.x.x.x" corresponds to the Router's name. For example, Loopback0 on R7 is 7.7.7.7 whereas Loopback0 on R2 is 2.2.2.2.
